Plate & Shell Heat Exchangers for Demanding Process Duties
JINCHEN designs and manufactures fully welded plate & shell heat exchangers. A circular plate pack inside a pressure shell brings compact heat transfer to heating, cooling, condensation and evaporation services.
Fully welded plate pack · Project-specific shell design
01Circular plate pack
02Fully welded channels
03Pressure shell construction
04Project-specific selection
WHY PLATE & SHELL
Plate efficiency. Shell strength.
Select the construction around your fluids, thermal duty, design conditions and maintenance requirements.
Fully Welded, Gasket-Free Plate Pack
Designed for reliable operation under demanding pressure, temperature and thermal cycling conditions.
Compact, High Surface-Area Design
High heat-transfer surface density enables compact construction and low fluid hold-up.
Resistance to Thermal Shock
Welded plate-pack construction is suitable for applications involving significant temperature changes and thermal cycling.
Small Footprint
Compact construction can reduce installation space compared with conventional exchanger designs.
THE PRODUCT
Built around your process.

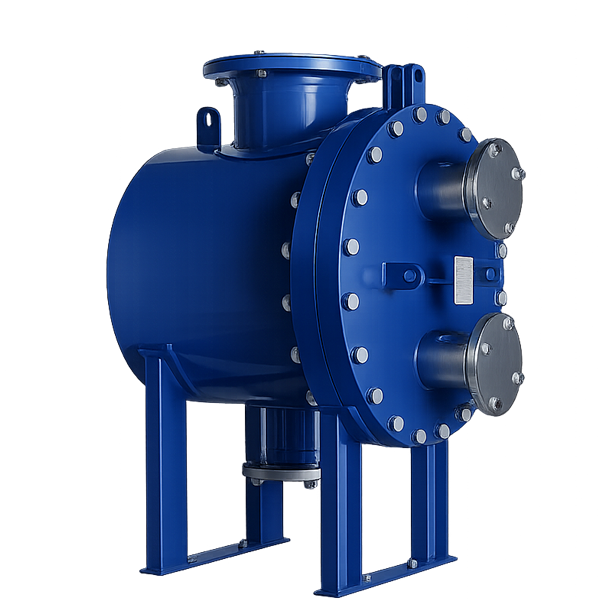

The BPS range combines a fully welded circular plate pack with a pressure shell. Choose the construction and materials to match the operating conditions.
- Fully welded heat-transfer channels
- Fully welded and openable configurations
- Shell and nozzles selected for your installation
APPLICATION ENGINEERING
Four duties. A tailored design.
Liquid heating & cooling
Process liquids, oils and condensates. Review viscosity, fouling and allowable pressure drop.
Gas heating & cooling
Gas-side flow and nozzle dimensions selected around the required duty and pressure drop.
Condensation
Steam and process-vapour condensation, including seawater-cooled service with appropriate materials.
Evaporation
Process evaporation, reboilers and kettle-type configurations selected for the operating conditions.
PROJECT EXPERIENCE
Equipment in real applications.
Explore three projects documented by JINCHEN, from water cooling to marine condensation and rich-oil heating.
01 / Cases
Nuclear power water cooling
A fully welded plate & shell unit for high-temperature, high-pressure water cooling.
View project
02 / Cases
Titanium seawater condenser
Titanium construction for seawater and mixed-gas condensation.
View project
03 / Cases

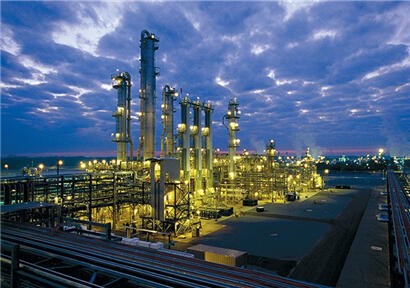

Rich-oil heating
Saturated-steam heating of rich oil in a coal chemical process.
View projectSend Your Process Data for Heat Exchanger Selection
Provide both fluids, flow rates, inlet and outlet temperatures, operating and design pressures, allowable pressure drop and material requirements. For an existing installation, include the nameplate and arrangement drawing.
